4 Nozzles Bottle Can Jerrycan 1L 2L 4L 5L 10L Automatic Chemical Liquid Ex-proof Filling Machine Filler

Informasi Dasar

Tempat asal:	Shanghai, Cina
Nama merek:	DAESUM
Sertifikasi:	ISO 9001

Kuantitas min Order:	1

Harga terbaik Hubungi sekarang

Hitungan nosel:	4	Rentang pengisian:	1-4L
Kecepatan pengisian:	1000-2000 BPH	Akurasi mengisi:	±0,1-0,2%FS
Voltase:	380V/440V	Tekanan udara:	0,4-0,6Mpa
Bahan:	SS304/SS316	Berat:	1500 kg
Tipe yang Didorong:	Pneumatik	Berat maksimum:	10kg
Selang:	10 gram	Kekuatan:	380/440V 50/60Hz
Komponen Inti:	Motor, PLC, Roda Gigi, Bantalan, Gearbox, Nosel pengisian, Pengumpan tutup, Capper, Ruang pengisian,	Jenis pengisian:	Otomatis Lanjutkan Pengisian
Jenis wadah:	Botol/Barel/Kaleng/Jerigen
Menyoroti:	ex-proof liquid filling machine , automatic chemical bottle filler , jerrycan filling machine with nozzles

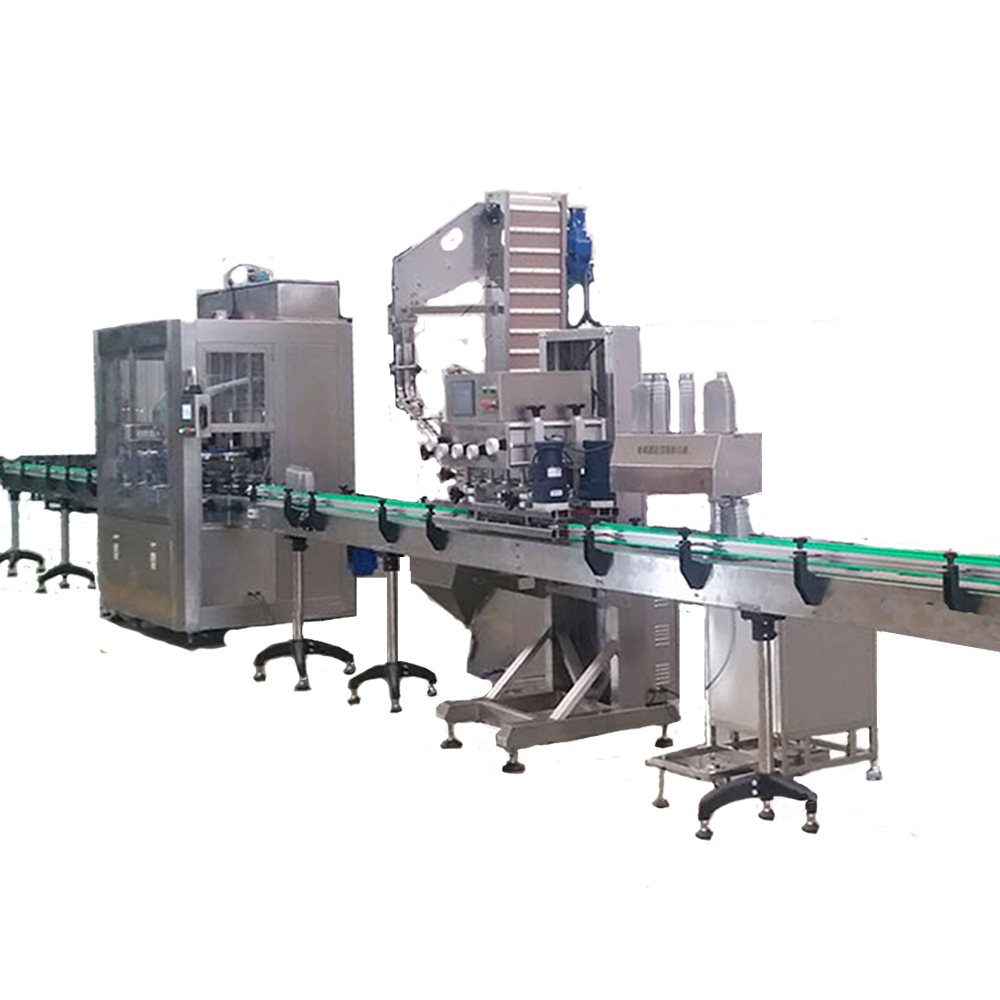

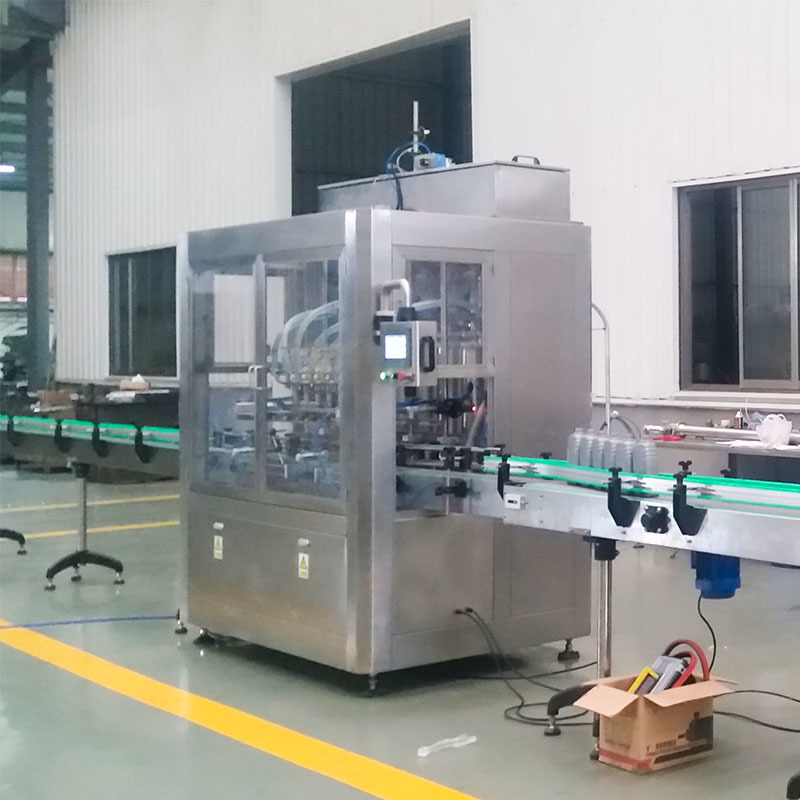

1-4L fully automatic Jerrycan Chemical Liquid Filling Machine Ex-proof

Equipment Description

The equipment realizes automatic matching through mechanical limit, and the barrel type can meet the filling requirements of containers of different specifications. At the same time, the equipment can be equipped with a second set of filling guns, which can satisfy the filling of two materials at the same time.

The GZ1-5-C automatic series can realize the automation of manual barrel loading, automatic barrel feeding, automatic quantitative filling, automatic capping and capping, automatic capping, and automatic reloading of barrels.

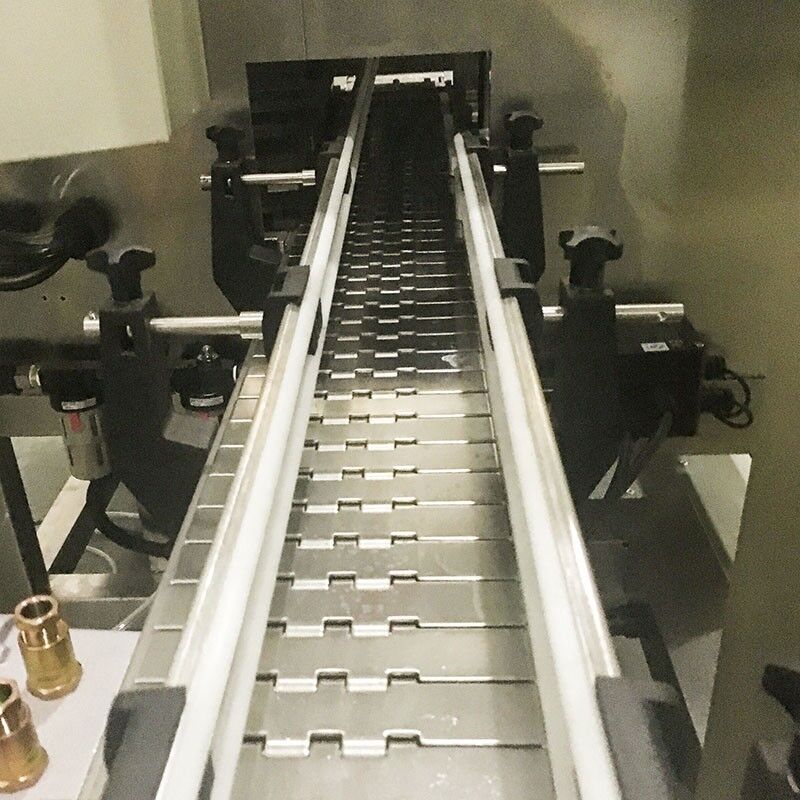

Mesh conveyor

1.Can be equipped with mesh conveyor for jerrycan infeed.

2.Driven by gear motor

3.Infeed 4 at a time

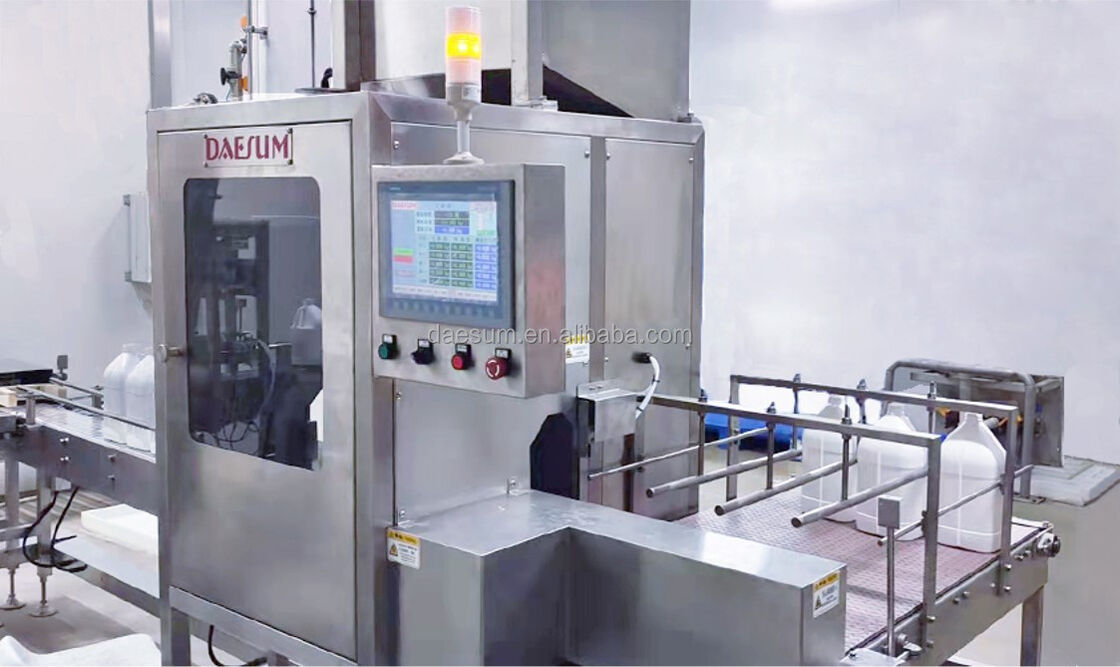

Weight check machine

1.Can be equipped with a weight check machine after filling, if the weight is not in the tolerance range, the jerrycan would be eliminated

Specification

Automatic Grade	Semi/Fully Automatic
Power	380/440V 50/60Hz
Air pressure	0.4-.0.6Mpa
Filling Accuracy	0.2%FS
Maximum weight	10kg
Interval	10g
Material	SS304/SS316
Container	Bottle/Barrel/Jerrycan
Filling range	1-4L
Filling products	Liquids
Filling speed	600-1200bph

Special Applications

DAESUM is specialized in the design and manufacture of special industrial filling, packing and dosing and mixing production line, particularly expertise in dealing with explosive, flammable, toxic, harmful, high-temperature and viscous material.

3.High-temperature and corrosive scenarios
Choose temperature-resistant and corrosion-resistant materials to make material touching parts to ensure the reliability and durability of the machine

4.Low melting point and easily solidified scenarios
The heat keeping design of the filling nozzle is adopted to prevent the material from cooling and blocking the pipeline and ensure a smooth filling path.

1.Flammable and explosive scenarios
The ex-proof and anti-static design of the whole line is adopted, the flow rate is controlled by the front-end combination valve,and the ex-proof electrical equipment of the world's first-class brand is configured to ensure production safety.

2.Toxic and harmful scenarios
The design of closed filling room and air extraction makes the filling environmentally friendly and healthy.

ISO 9001 Certificate

ISO 14001 Certificate

ISO 45001 Certificate

F&Q

1. When was Daesum first established? Where is our factory located at?

- Shanghai Daesum Science Instrument and Equipment Co., Ltd. (“DAESUM”), founded in 1997, is located in 2688 Xinghua Road, Jiading, Shanghai. The company built its own production and living site, with total GFA of 7000m². The site is composed of 5 workshops, 1 office building, and 1 complex building. The workshops occupy around 3600m² in total.

2. What kind of product do you provide?

- 1-1000L filling machines, and powder packing machines, as well as dosing and mixing production line.

3. Can you do explosion proof filling machines?

- Yes

4. What kind of service can you provide?

- We could offer preliminary customized machine design, to manufacture, to installation, to commissioning and after-sales service.

5. Where can you export?

- We export wordwide, we have exported to the USA, Mexico, Australia, Japan, Malaysia, UAE, the Philippines, Singapore, Pakistan, India, and etc.

6. If we need maintenance or meet problem, how could you help?

- Please call or email us the problem you meet, we will reply asap. If necessary, we could offer remote access to help solve the software problem. Otherwise, we would advise you the spareparts to replace the existing broken ones.

7. What kind of package would you use?

- For the entire machine, we usually make shipment in independent containers, and our staff will wrap films around the machine, then fixed it in the container.

- For spareparts, we usually send by air express with boxes.
