1-4L Fully Automatic Electric Tin Can Filling Casing Palletizing Wrapping Line for Chemical Liquid Gear Motor Engine PLC Core

Tin Can Filling Machine with 3 Heads GZ-18ST-3(Square Metallic Tin)

*Product Application:
   Applications include free flowing to viscous products, including chunky products. Fill
   volumes from 5L to 25L at high flow rates with accuracies up to ±0.2% dependent upon tin
   can size and type of product.

*Technical Specification:

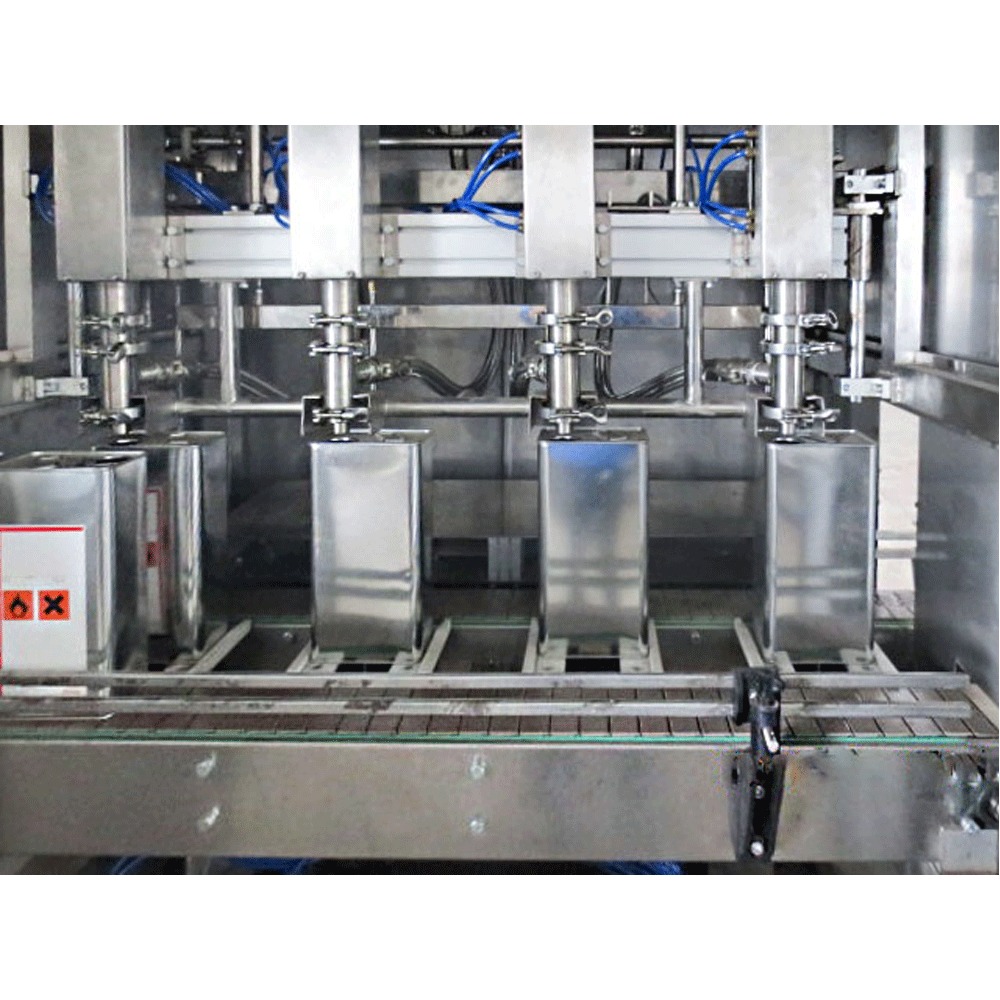

*Filling System includes:
  1). Three (3) set of SS304 Nozzle equipped;
  2). No spilling of the product onto clean cans and roller conveyor with hood cover under the
       nozzle.
  3). Quick-release, fast inter-changeable lance for easy and fast maintenance;SS316 straight
       pipe;
  4). Top/Low Fill, auto lowering of lance assembly together with the hood cover and retract to
        its original up position;
  5). METTLER TOLEDO Brand Weight Scaler with digital display;
  6). Heavy duty weighting platform mounted single load cell, overload protected;
  7). All parts in contact with liquid must be in SS304&PTFE seals;
  8). spring assists to close filling nozzle in the even of power failure;
  9). Stainless steel 304 enclosure with front viewing Perspex mounted hinge cover;
  10). IP55 class control cabinet to house weighing indicator and pneumatic box to house all
        pneumatic components.

*Control system includes:
     1). Germany Siemens/Japan Omron PLC Control System;
     2). Manual/Net/Gross Filling. Auto two stages fast/dribble fill

* Optional Item&Accessary Equipment
    1). Digital Touch Screen Panel with System Integration;
    2). PLC to DCS synchronization and simulation;
    3). Storage tank with level controller;
    4). Available to suit Hazardous Environments with Ex-proof system;
    5). Tin De-palletizer and Palletizer
    6). Auto Capping Machine (Both of Press-on and screw cap);
     7). Check weight, labeler, robot arm palletizer,etc
     8). Nozzle diving system for foamy product.










Customized according to the customer request is also allowed.


Call/email now for a quick response to your application questions.
