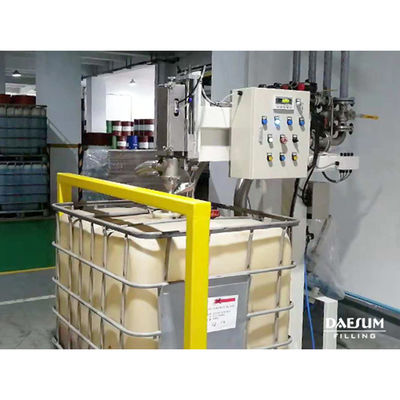

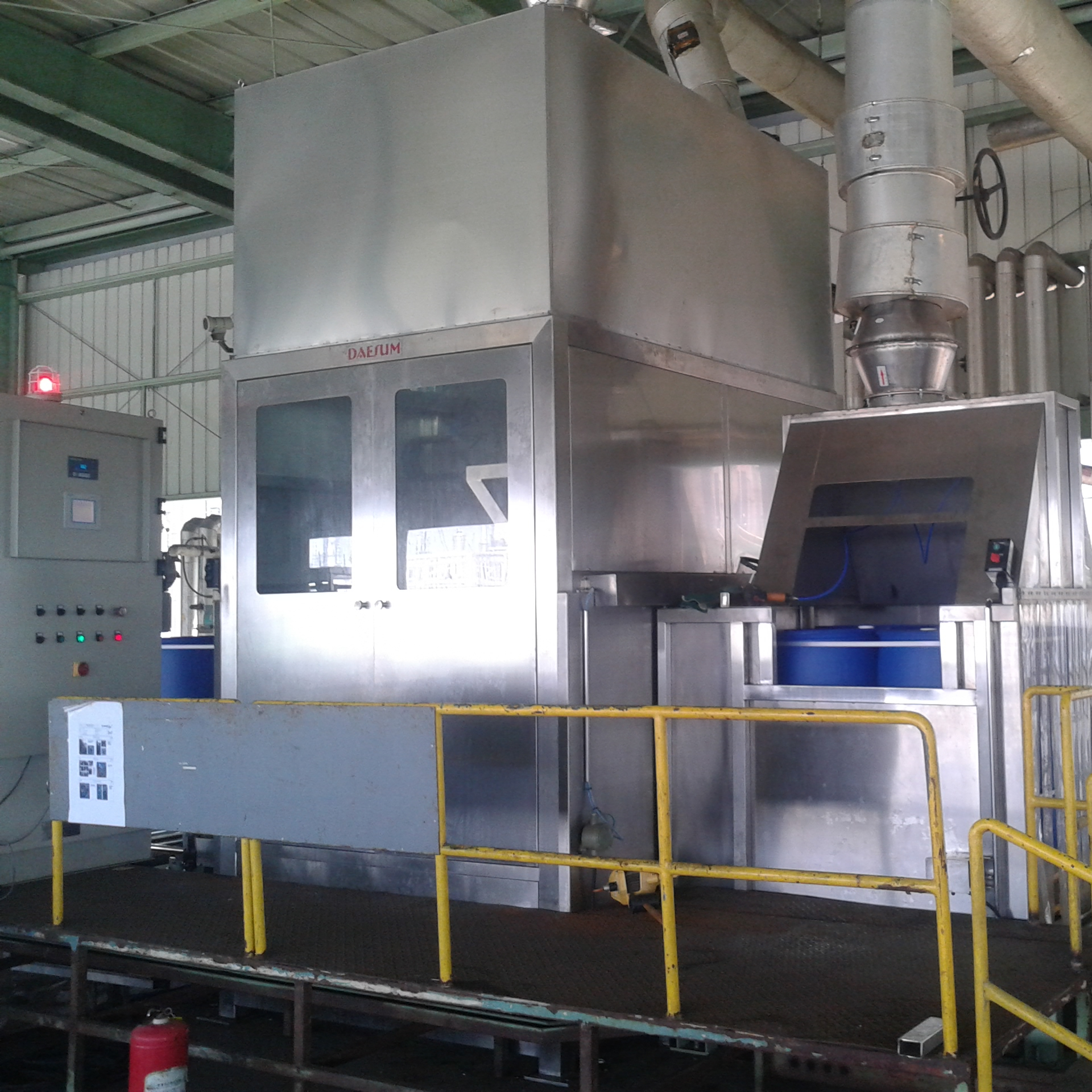

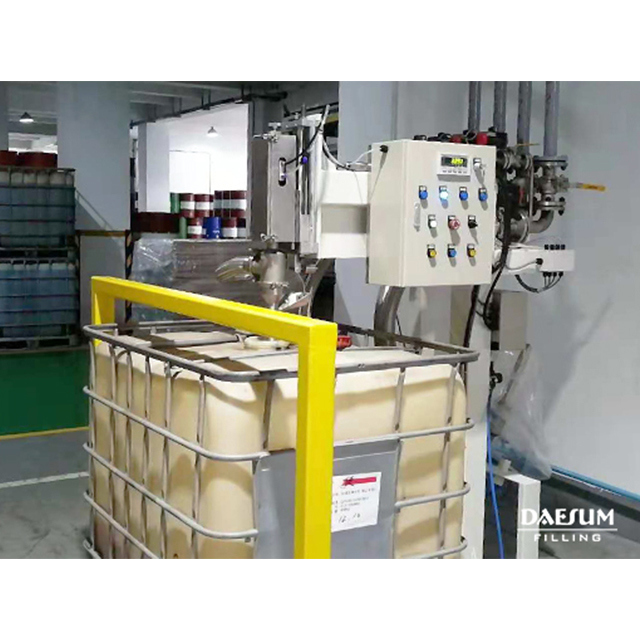

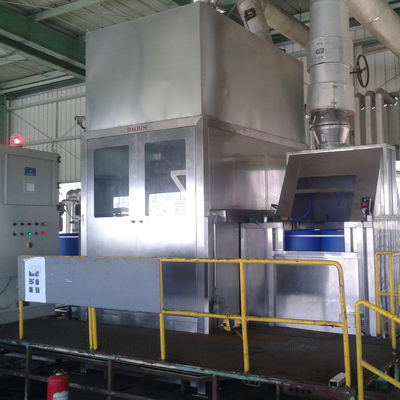

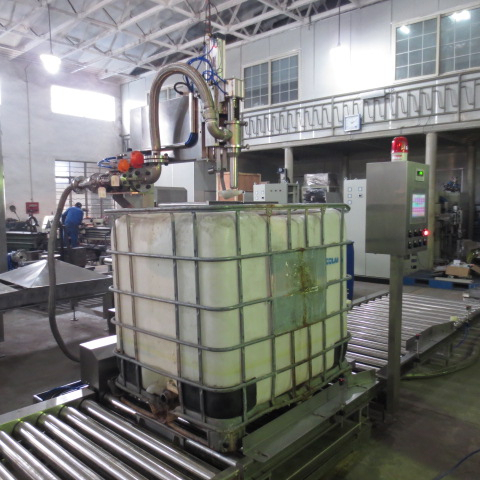

Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications

Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications
Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications
Informasi Dasar
Tempat asal: Shanghai, Cina
Nama merek: Daesum
Kuantitas min Order: 1
Harga: $28,000-30,000
Harga terbaik Hubungi sekarang
Kapasitas mesin: 8BPH Akurasi mengisi: ± 0,2%FS
Berat: 1500 kg Suplai tegangan: 415/220, 1/3phase, 50/60Hz
Kecepatan output: 50-60 drum/jam Ukuran drum: 50L hingga 1000L
Mode pengisian: Di atas atau di bawah tingkat cairan dengan pengisian cepat & dribble Bentuk wadah: Tangki IBC bulat, ember, drum atau lainnya
Bahan drum: Wadah plastik & logam Komponen inti: Motor, PLC, Roda Gigi, Bantalan, Gearbox, Mesin
Sistem Kontrol: Jerman Siemens/Jepang Omron PLC Bahan pengisi: Minyak, cairan
Bahan Bangun: Selesai Dicat Baja Tahan Karat atau Seng Sel beban: Platform pembobotan tugas berat dipasang tunggal
Bahan kandang: Stainless Steel 304
Menyoroti:

High Accuracy IBC Filling Machine

,

Customizable Pallet Filling Machine

,

1 Year Warranty Automatic Filling Machine

Automatic IBC Filling Machine
This filling machine is suitable for containers from 50L to 1000L and can be manually adjusted via touch screen.
Product Application
Designed for free-flowing to viscous products, including chunky products. Fill volumes range from 50L to 1000L at high flow rates with accuracies up to ±0.2%, depending on drum size and product type.
Technical Specifications
Feature Specification
Product Compatibility Free flow to high viscosity
Output Speed 50-60 drums/hour (dependent on drum size and product type)
Container Shape Round IBC Tank, pail, drum or others
Drum Material Plastic & Metal container
Drum Size 50L to 1000L
Voltage Supply 415/220, 1/3Phase, 50/60Hz
Filling Accuracy Class X (0.5) (0.2%)
Filling Mode Above or under liquid level with fast & dribble fill
Custom configurations are available according to customer requirements.
Type of Build
  • Stainless Steel or Zinc Painted Finish
  • Performs debunging, filling, bunging, clinching, stenciling, and palletizing in a compact area with minimal operator requirements
Filling System Features
  • No product spillage onto clean drums with hood cover under nozzle
  • Manual/Net/Gross filling with auto two-stage fast & dribble fill
  • Quick-release, fast interchangeable lance for easy maintenance (SS316 straight pipe)
  • Top/Low Fill with auto-lowering lance assembly and hood cover
  • METTLER TOLEDO brand weight scaler with digital display
  • Heavy-duty weighting platform with single load cell and overload protection
  • Powered or gravity-fed pallet conveyor system (2x2 configuration)
  • Spring-assisted nozzle closure during power failure
  • Stainless steel 304 enclosure with front viewing Perspex cover
  • Safety interlock for nozzle closure before lance withdrawal
  • IP55 class control cabinet for weighing indicator and pneumatic components
Control System Features
  • Germany Siemens/Japan Omron PLC Control System
  • Manual/Net/Gross filling with auto two-stage fast/dribble fill
Optional Items
  • Digital Touch Screen Panel with System Integration
  • PLC to DCS synchronization and simulation
  • Hazardous Environment Ex-proof system
  • Manual Drum Crimper Tool with ground support
  • Nozzle diving system
Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications 0 Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications 1 Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications 2 Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications 3 Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications 4
